NEO PQA 8000 - Mobile Power Quality Analyzer

As the year progresses NEO Messtechnik continues to evolve and demonstrates once again the ability to forge its long-standing expertise of the Power Quality market into yet another impressive PQ Analyzer that enables engineers to stay ahead of the curve.

With the new PQA 8000, you can measure supraharmonic currents and voltages up to 500 kHz as needed. Our unique measuring device allows continuous recording of raw data at full sampling rate or use an extension box to determine the grid impedance up to 150 kHz or 420 kHz. You can access the device at any time using TeamViewer or Anydesk, making it suitable for installation in control cabinets. Should any issues or uncertainties arise, we offer remote support to assist you.

HARDWARE

  • Power Quality

    Class A ++

  • High Sampling Rate

    124kS/s or 1MS/s

  • High Accuracy

    0.05%

  • High Resolution

    18bit / 24bit

  • High Dynamic

    0.5mA to 150kA

  • High Safety

    CAT IV 600V

  • High Performance

    WINDOWS PC with Multi-Touch and battery pack

  • High Connectivity

    additional input signals, Interfaces, AC&DC power, etc.

SOFTWARE

  • Supraharmonics up to 500kHz

    Harmonics, Inter- Supraharmonics, THD

    WORLD LEADING

  • Visualisations

    Recorder, Waveform, FFT, Vector, Table, etc.

  • Transient Recording

    Waveform & Disturbance Trigger

  • Disturbance

    triggering & storing of raw data, 1/2 period data or 10 period data

  • Continuous Storing of

    raw data in full sampling rate, 1/2 period data or 10 period data

  • System Dynamics

    Resonances, Phase Angle Jumps, etc.

  • Phasor Measurement Unit (PMU)

    and RoCoF

  • Report

    EN50160, IEEE519, IEC61000-2-4, etc.

Alt Text

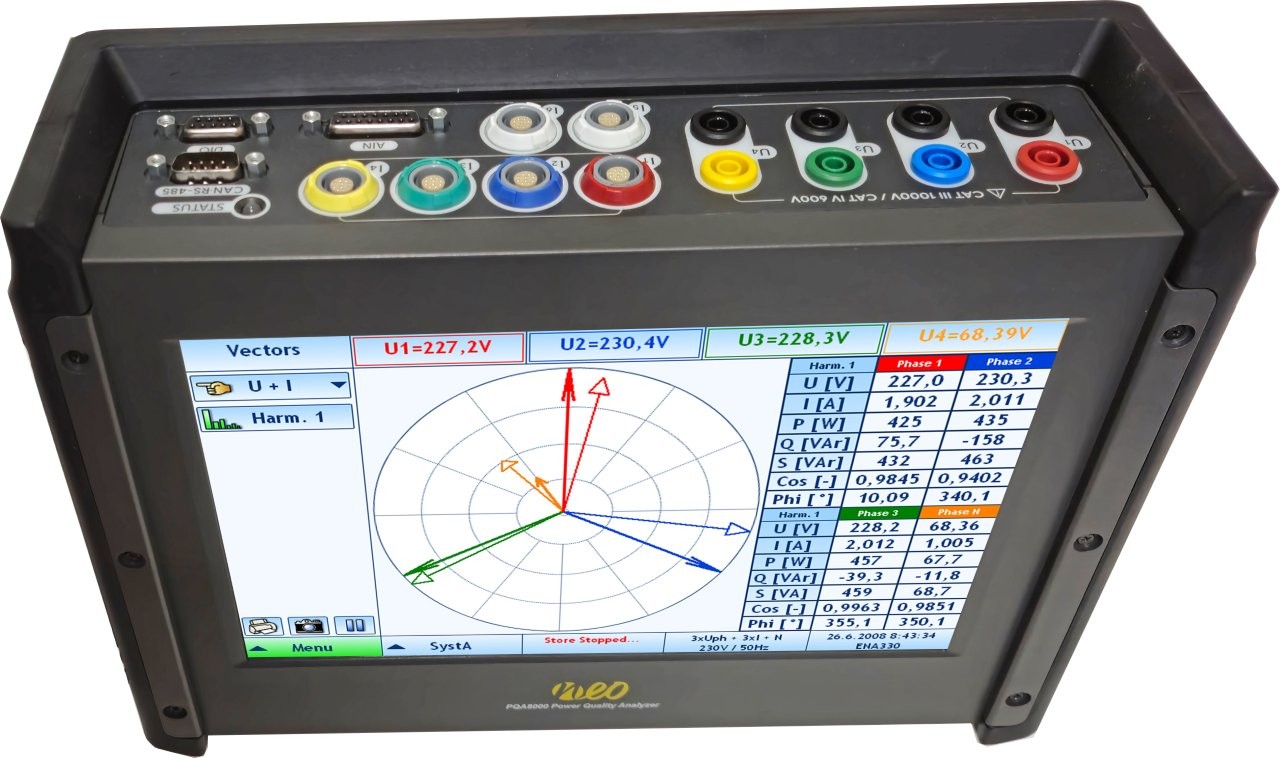

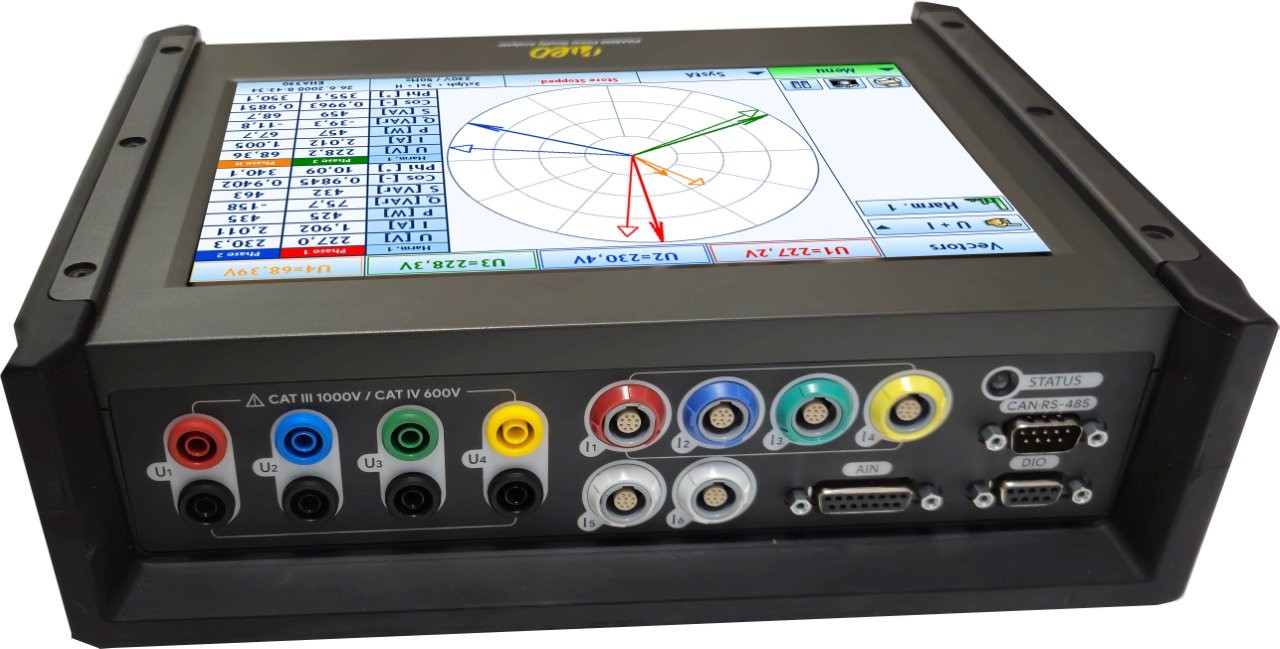

HARDWARE

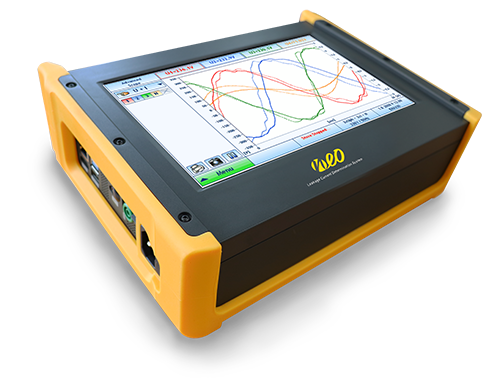

State of the Art

Smart Touch

11 inch full-HD Smart Touch display

Mobile Operation

up to 4 hours of operation.

Sensor Supply

for current clamps and sensors (uni- and bipolar)

Weight and Dimensions

4 kg,   298 x 225 x 95mm
Alt Text
Alt Text

GPS

for highly-precise time synchronization

Large SSD

up to 1 TB data storage

Interfaces

USB 3.0, TCP/IP, LAN, Wifi, Bluetooth, RS232, Modbus, 104, DIO, and CAN.

Highest Quality

Multi System

Sync.

Multi-Touch Display

Sunlight-readable

Alt Text
Alt Text

Batterypack 4h

Mixed System

Connectivity

Remote

Charger integrated

MEASUREMENT IN ALL VOLTAGE LEVELS

up to 1600 V

Alt Text
  • Voltage up to 1600 V direkt
    up to 500 kHz
  • Accuracy: 0.05%
  • Sampling Rate: 1 MS/s
  • SNR: >90dB
  • Gain Drift: max. 20ppm/K
  • Resolution: 18bit
  • Current Measurement via Rogowski up to 500 kHz

10-36 kV

  • Voltage Divider (T-piece)
    up to 150 kHz

         Link AppNote

  • Details can be read in the datasheet of the sensors
  • Current Measurement via Rogowski up to 500 kHz

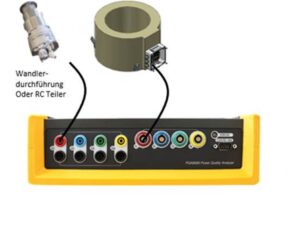

110 – 380 kV

  • Voltage measurement via
    capactive voltage coupling, see:

         Link AppNote

  • Current Measurement via
    Senseleq Zero flux transducer transducer

         Link AppNote

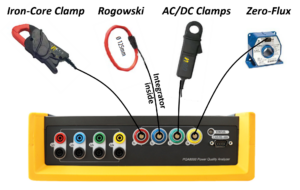

CURRENT MEASUREMENT

  • up to 8 inputs for current clamps or Rogowski coils
  • Accuracy: 0.05%
  • Bandwidth: 500kHz
  • Sampling rate: 1 MS/s
  • Input for Rogowski coil with integrated integrator
  • Integrator measuring ranges: 30A, 300A, 3kA, 30kA, 120 kA
  • Current clamp measuring ranges from 10mV to 10V (min. 10 measuring ranges)

All sensors directly powered by instrument!

(Bipolar (±15V), Unipolar (+9V)

Multiple measurement ranges:

2mV, 20mV, 200mV, 500mV, 1V, 2V, 5V, 10V

EXAMPLE USE CASE OF PQA 8000

Alt Text

CONTINOUS SAVING OF RAW DATA, 1/2 OR 10 PERIOD DATA

.

HIGHEST PRECISION FOR HIGH-FREQUENCY

POWER QUALITY MEASUREMENTS

  • Class A according to IEC61000-4-30 Ed.3
  • Supraharmonic voltages up to 150kHz or 500kHz
  • Supraharmonic currents up to 150kHz or 500kHz
  • Evaluation according to IEC61000-2-2:2020, EN50160, IEC61000-3-2, etc.
  • PMU functionality (TVE: max. 0.01%, angle 0.003°)
  • Raw data recording with trigger release up to 60 seconds
  • 1/2 period recording for fault triggering up to 1h
  • Continuous raw data recording in full sampling rate also possible
  • Power measurement with 0.05% accuracy
  • Correction factors for voltage and current sensors for amplitude and frequency
  • Evaluation software without licensing

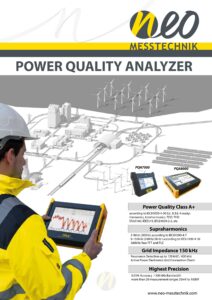

Flyer of PQA8000:
(Englisch)

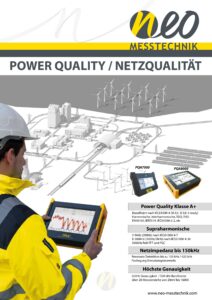

Flyer des PQA8000:
(German)

Alt Text

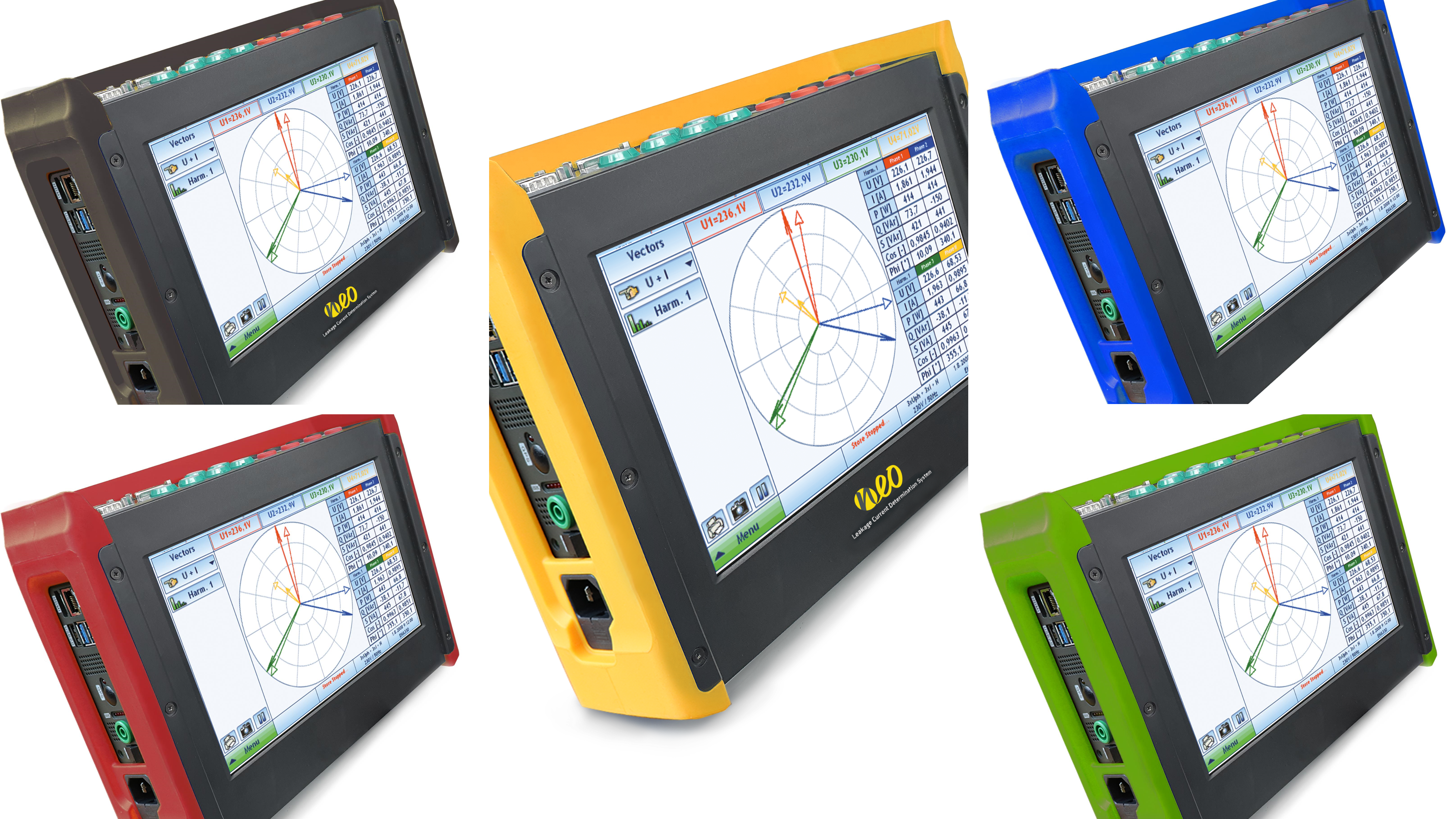

SELECT YOUR COLOUR

Choose between many different colours and align the instrument style to your companies CI.

Standard colours: Green, Yellow, Black, Red, Blue

The NEO Sensor Integration

Highest Precision

Alt Text

HIGH BANDWIDTH & HIGH ACCURACY

Conventional PQ Analyzers, even if they are Class A certified, are not sufficient for modern measurement applications. We use the best available components to ensure the highest safety category and also the highest accuracy. NEO instruments offer high bandwidth (up to 1 MHz) and correct the frequency dependent behavior of current & voltage sensors as well as integrated electronics to achieve the best possible measurement results

SENSOR INTEGRATION

All current sensors offered by NEO Messtechnik are industry proven for different applications. We use and improve on the best available sensors in the market.

FREQUENCY DEPENDENT CALIBRATION
The NEO sensor integration calibrates each sensor over a wide frequency bandwidth and corrects frequency dependent phase shift and amplitude damping. This allows for high precision from DC to high-frequency measurements.

MEASUREMENT RANGE DEPENDENT CALIBRATION
In addition, the sensors will calibrated for each measurement range using multiple points. The calibration will typically cover points from 1% to 100% of the nominal measurement range. This will improve the accuracy and precision, especially at low current (e.g., 1% of nominal measurement range).

Alt Text
Alt Text

LEADING IN SAFETY

Overvoltages from power lines down to factories can be higher than normal operating voltages. To avoid any kind of electrical accident, NEO Messtechnik emphasizes the importance of a safe instrument design. For example, the high-voltage inputs of the PQA 8000 instrument (CAT IV 600V) are isolated up to 6kVp while maintaining high precision (0.05%) and high sampling (up to 1MS/s). This is world-leading technology.

Truly Intuitive Software

Clearly structured. Explicit Menus.

1. SETUP

The instrument has a clear structure that
shows schematics with explanations.

Alt Text
Alt Text

2. MEASURE

During measurements the user can define widgets such as Scopes, Vector Scopes, Harmonic FFTs, Tables, and Recorders.

3. ANALYSE

Sophisticated functions include PQ Data, Transients, Disturbances, and Alarms.

Alt Text

4. REPORT

The instrument can automatically generate reports and professional documentation. The user can create reports that include all relevant information (location, comments, company logo, etc) directly on-site or during post processing. PDF reports that are saved on the instrument are always available and can be shared directly via email.

Alt Text
Alt Text
Alt Text

5. EXPORT

Data can be exported into CSV, XLS, PDF, Comtrade, and PQDiff.

6. OTHER PROGRAMS

The instrument uses Microsoft Windows© as the operating system. Programs such as Microsoft Excel, Word or Matlab can be added as well as Email messaging services.

World's best Power Quality Analyser

Alt Text

Datasheet

DOWNLOADS

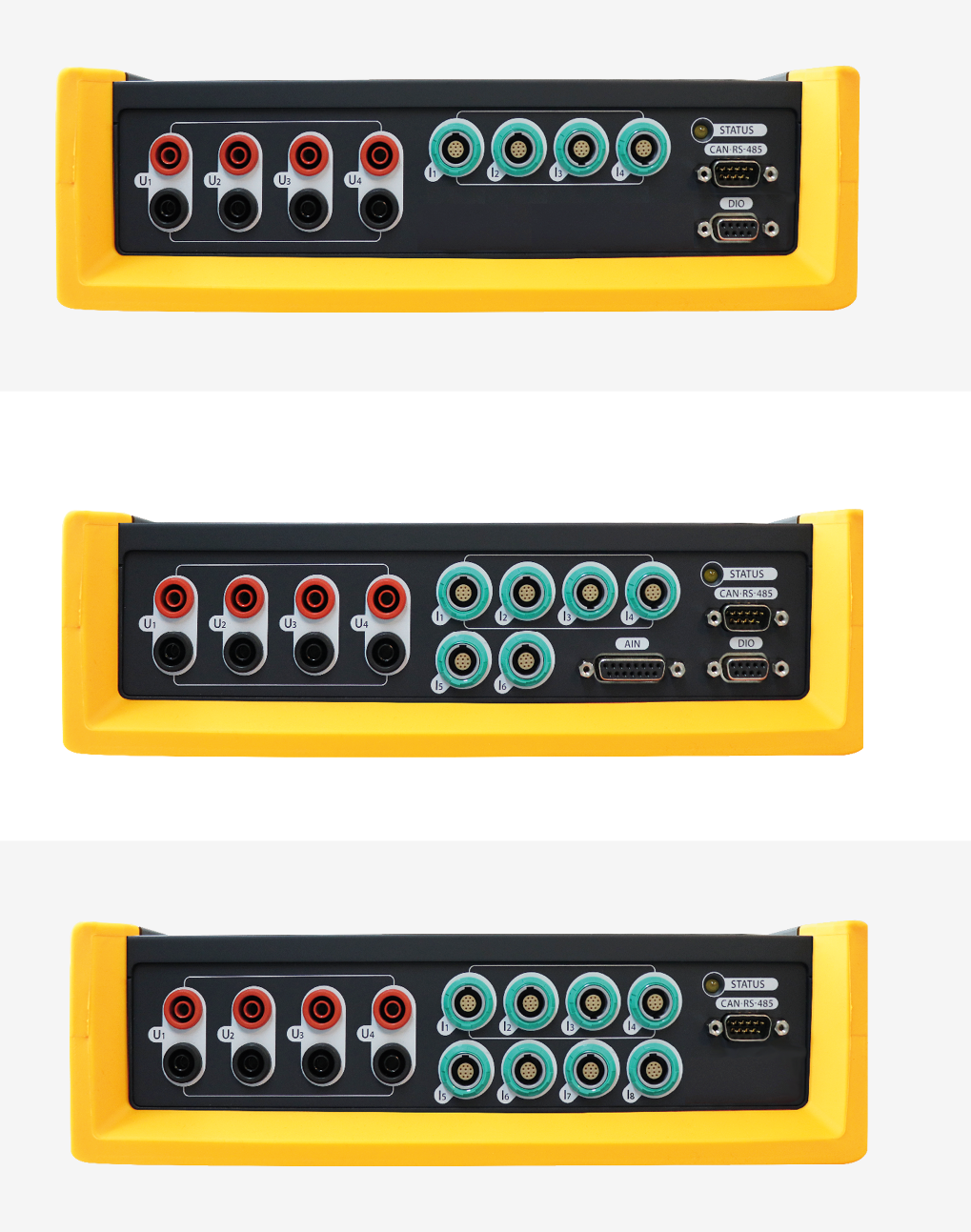

Instrument Options

PQA8000

4x Voltage Input 1600V DC
4x Current Input (Rogowski, Clamp)
CAN / RS485



PQA8000-P

4x Voltage Input 1600V DC
6x Current Input (Rogowski, Clamp)
2x Analog Input (± 10V)
CAN / RS485 / DIO



PQA8000-M

4x Voltage Input 1600V DC
8x Current Input (Rogowski, Clamp)
CAN / RS485 / DIO

Alt Text

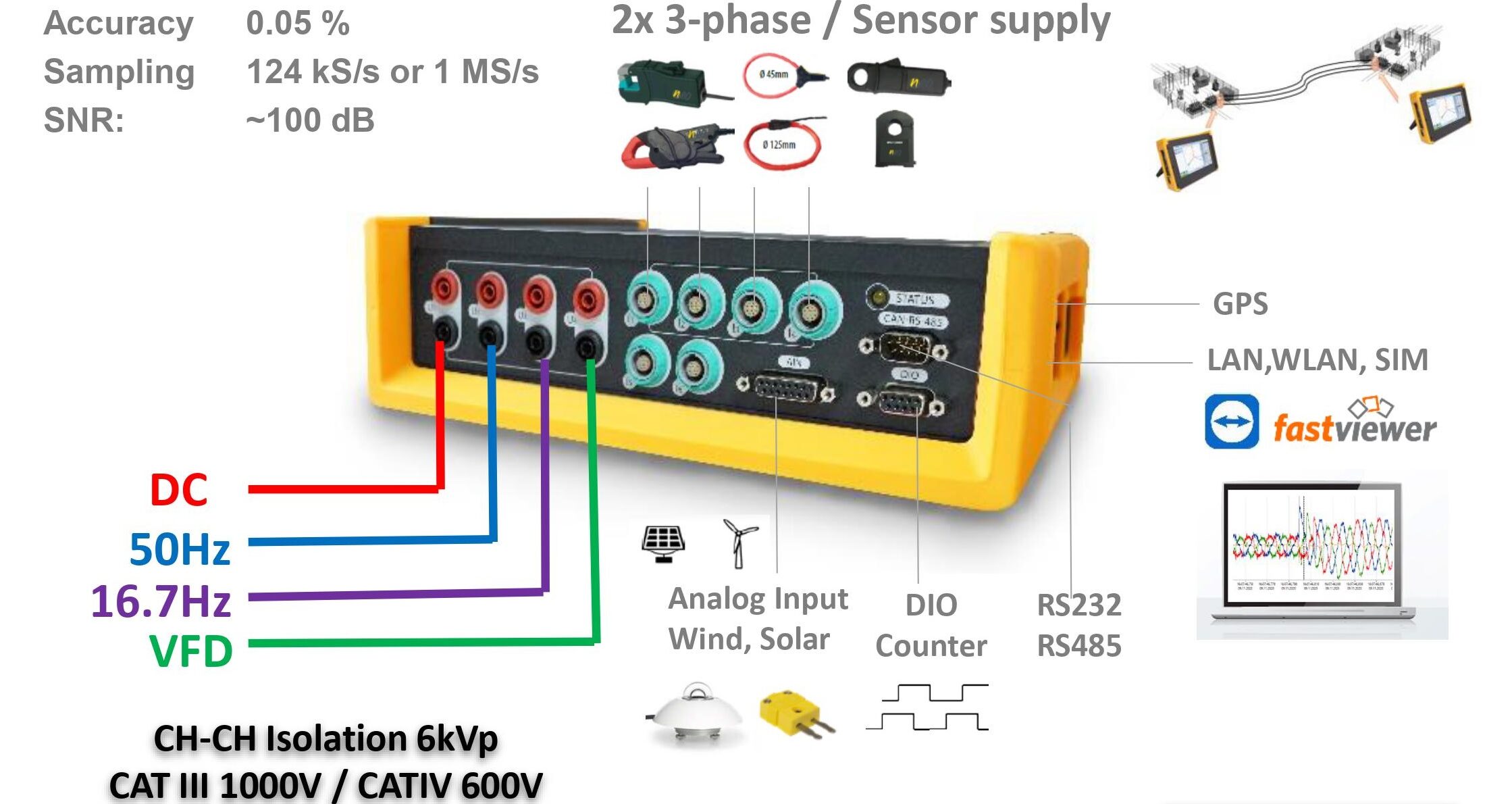

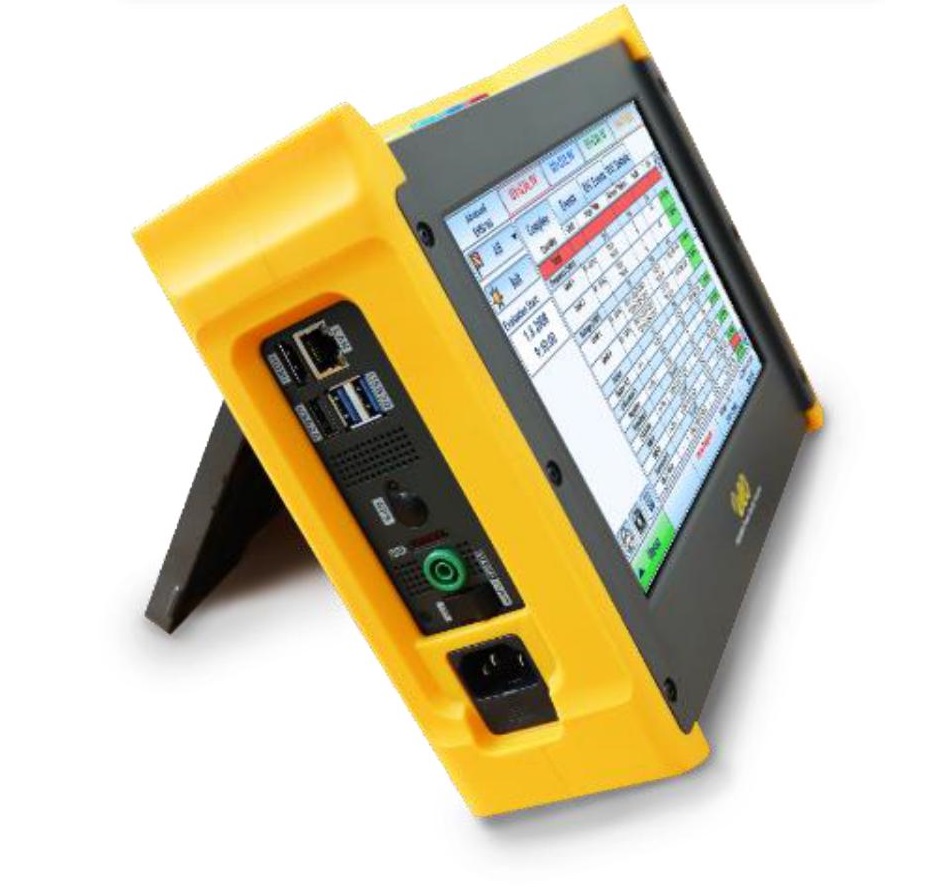

Key Features

Power Quality

Alt Text

according to IEC 61000-4-30 Ed.3 and IEC 62586

Harmonics, Interharmonics and THD:
Class A
Higher Frequencies and Supraharmonics:
2 – 9 kHz (200 Hz band)
2 – 500 kHz (2 kHz band)
Symmetrical Components & Unbalance:
Class A ((Pos-, Neg- and Zero Sequence))
Flicker (PST, PLT, Pinst) and RVC:
Class A

.

Voltage Events:
Class A (dip, swell, interruption – time, extrema, length)
Frequency:
10 sec, AVE, MIN, MAX
Voltage, Current:
RMS, AVE, MIN, MAX, ½ Period-values, 200ms, 10s, 10min
Time Synchronisation:
Class A

Power

Alt Text

Power Calculation:
P, Q, S, PF, cos phi, D, DH, QH

Frequency:
10 sec, AVE, MIN, MAX

Voltage, Current:
RMS, AVE, MIN, MAX, ½ Period-values, 200ms, 10s, 10min

Power Calculation:
P, Q, S, PF, cos phi, D, DH, QH

Energy:
Total, positive, negative (P, Q, P+, P-, Q+, Q-)

Efficiency:
DC / AC, U-I Curve for PV

Wiring:
DC, 1-Phase, 2-Phase, 3-Phase Star and Delta

Waveform & Transients

Alt Text

MIN, MAX, RMS, AVE:
U, I, P, Q, S, f, PF, phi, THD, Harmonics, Interharm., Unbalance, etc.
ENVELOPE / WINDOW:
U, I
DELTA:
dU, dI, df, dP, etc.

DERIVATE (RATE OF CHANGE):
dU/dt, df/dt etc. … per ms, number of periods or half-period
VOLTAGE SIGNALLING:
Threshold
EN50160:
Trigger on any EN50160 parameter (Max, Quantil)

Disturbances and System Dynamics

Alt Text

1/2 PERIOD TRIGGER:
U, I, P, Q, S, f, PF, phi, THD, Harmonics, Interharm., Unbalance, etc.

SYMMETRICAL COMPONENTS:
Positive-, Negative-, Zerosequence

Phasor Measurement Unit (PMU)
according to IEEE C37.118: Total Vector Error 0.01% (typ.), Angle Error 0.003°(typ)

RATE OF CHANGE OF FREQUENCY (ROCOF)

Complying Standards

POWER QUALITY, HARMONICS, FLICKER:
IEC61000-4-30 Ed. 3 Class A / IEC61000-4-7 / IEC61000-4-15 /  IEC62586-2 Ed. 2 / IEC62586-1
PUBLIC GRID, RAILWAY AND INDUSTRY
EN50160 / EN50163 / IEC61000-2-2 / IEC61000-2-4 (Class 1; 2; 3) / IEEE519  / IEEE 1159 / IEC61000-2-12 / NRS048
WIND POWER, RENEWABLES AND GRID CODES
IEC61400-21 / IEC61400-12 / FGW-TR3 / VDE N-4105 / VDE N-4100 / VDE N-4110 / D-A-CH-CZ / BDEW / ROCOF / IEEE C37.118-2005 (PMU)
MOTORS, TRANSFORMERS AND ELECTRICAL EQUIPMENT
IEC60034 / IEC 60076-1 / IEC61000-3-2 / IEC61000-3-3 / IEC61000-3-11 / IEC61000-3-12

APPLICATIONS

See all Applications of the NEO PQ Analyzers

Applications

Learn more about ..

Media
EnglischGerman

How Not To – Out-dated Measurement Approach

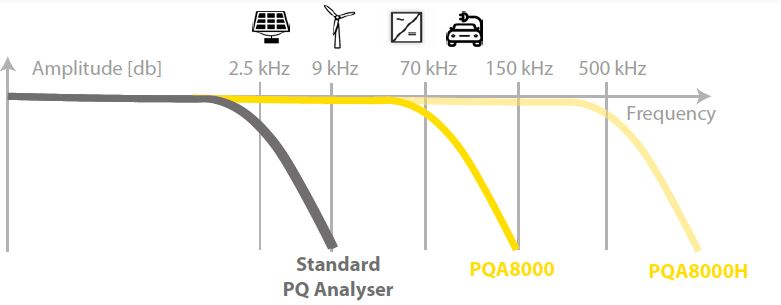

Analysing the effects of Supraharmonics asks for Power Quality Analyzer that cover a frequency range up to 500 kHz. Classical PQ Analyzers present problems because of their limited bandwidth. Typically they can measure up to the 50th Harmonics (2.5kHz), but cannot detect higher emissions of voltage and currents. By design, they are not able to be used in the troubleshooting process at all.

How To – Troubleshooting with the PQA 8000

On the applications page, we outline the complexity and shortcomings of traditional measurement approaches we often see out in the field. Fortunately, all these problems do not concern engineers with the appropriate measurement equipment. Our customers appreciate the PQA8000H in troubleshooting Supraharmonic emissions, where its strengths really come into play ..

Applications
Alt Text

PQ analysis at the highest level

  • High accuracy
  • High safety standards
  • Harmonics, Interharmonics and THD
  • Higher Frequencies and Supraharmonics

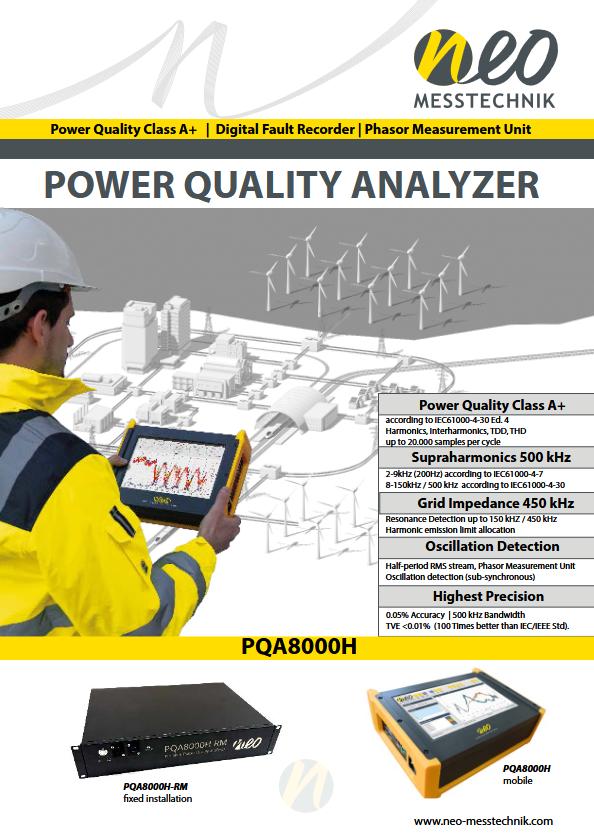

Download Flyer here
